Coverage has always played an important role in embedded software development projects as a means of showing that all parts of the code have been tested. In particular, the ISO 26262 standard mandates that testing should fulfill coverage metrics like statement, decision, and MC/DC coverage.

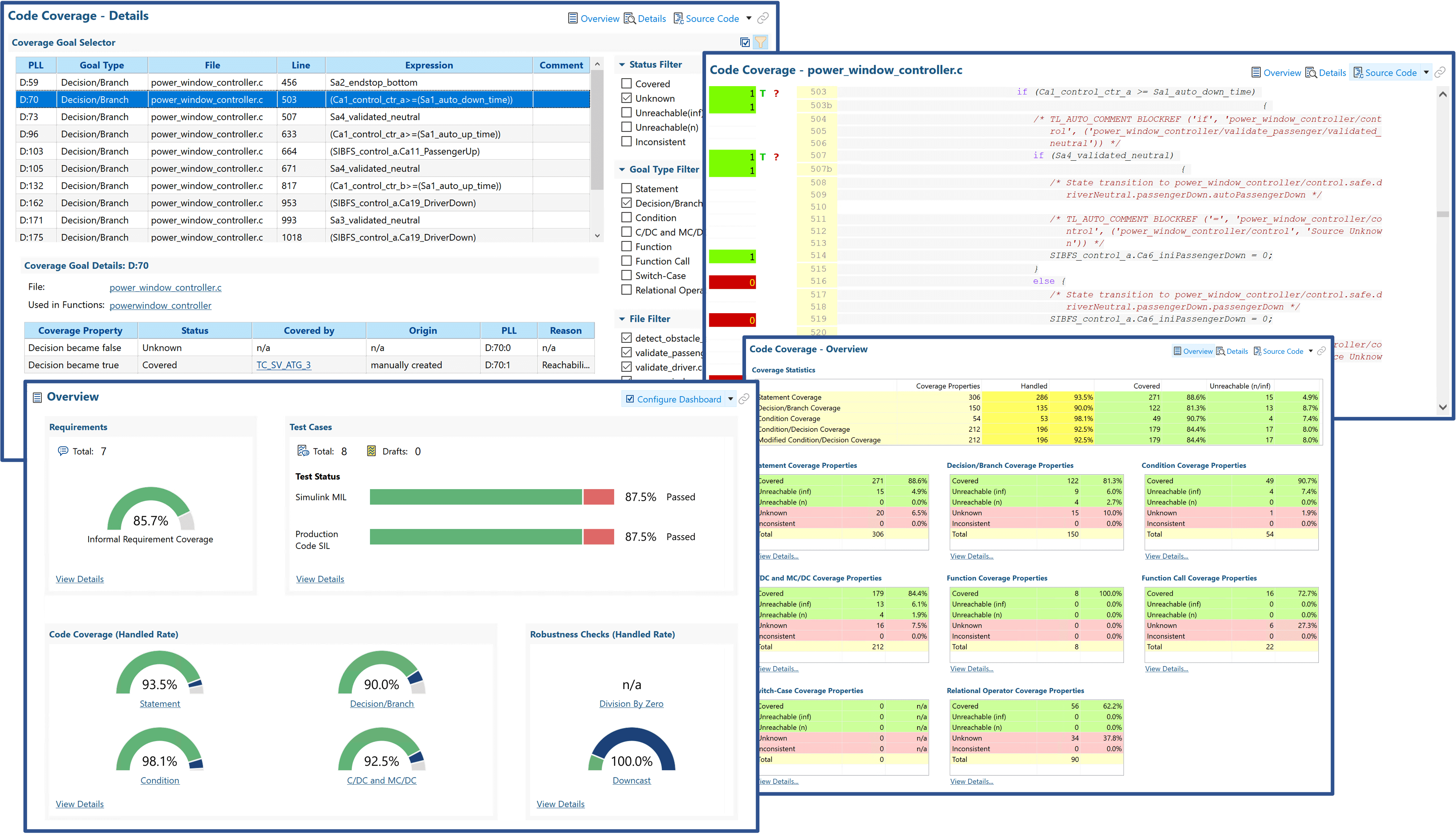

In BTC EmbeddedPlatform, code coverage is automatically calculated and updated in the background. Create, change, import, or delete a test case? The code coverage report has already been updated to reflect these changes. Want to see the coverage provided by a certain subset of test cases? The answer is just a click away. BTC EmbeddedPlatform even provides individual coverage information for each subfunction or subsystem, making it easy to analyze and optimize coverage even for large applications.
In addition to standard structural coverage goals like statement, decision, and MC/DC coverage, BTC EmbeddedPlatform offers a wide range of additional coverage goals, like the “relational operator” or “robustness” goals, to simplify testing for common, bug-prone situations. The “relational operator” goal analyses whether or not the critical sections surrounding a particular threshold have been tested; so, for example, if your code has the condition “if x is greater than 5“, a relational operator goal will check what happens when x takes on values 4, 5 and 6. The similarly-useful “robustness” goal , meanwhile, allows you to rigorously search for critical situations, like division by zero or downcasting.

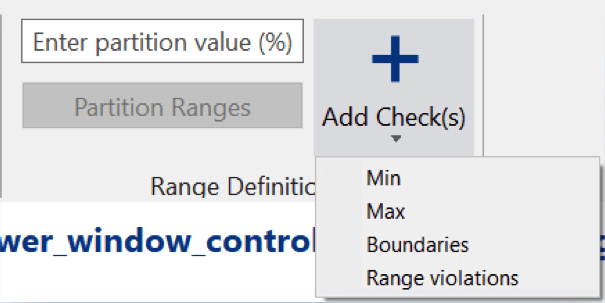

With our “Domain Checks” feature, you can define or import individual values or value ranges for each interface object. This enables you to efficiently comply with the ISO 26262 requirements on equivalence classes and boundary value analysis.
BTC EmbeddedPlatform allows generating test cases automatically, providing you 100% coverage of your C-Code.
If you would like to try out our tools, we will gladly provide an evaluation license free of charge. Evaluations include a free launch workshop and also provide an opportunity for you to meet one-on-one with our support and engineering teams.
Do you have any questions or want to see our tools in action? If so, please use the link below to schedule a meeting, where a member of our engineering team will be happy to show you the features and use cases and directly answer any questions you might have.
If you would like to try out our tools, we will gladly provide an evaluation license free of charge. Evaluations include a free launch workshop and also provide an opportunity for you to meet one-on-one with our support and engineering teams.
Do you have any questions or want to see our tools in action? If so, please use the link below to schedule a meeting, where a member of our engineering team will be happy to show you the features and use cases and directly answer any questions you might have.
